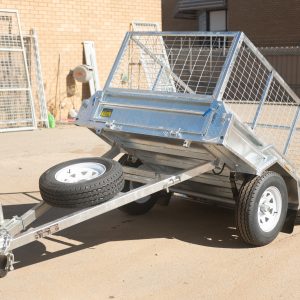

7 x 4 Heavy Duty Trailer – Galvanised


Heavy Duty Galvanized Box trailers from Trailers Canberra come standard as tipping trailers with a long list of features all included. The only tipping trailers with 4 locking points at the front.

All of Trailers Canberra Premium Heavy Duty range are Australian built fully welded galvanised with full 50mm box chassis, solid axles and 5 leaf Eye to Eye suspension add to that a drop down front and back gate and a cage and you are ready for some serious work.

  • *Ladder Racks
    • $
    • $
    • $
    • $
    • $


Technical Specifications

  • Side: 300mm High Fully Welded
  • Drawbar: 1600mm,70mmx50mm
  • Finish: Hot Dipped Galvanized
  • Body: Tilt Body, Drop Down Front/Rear Panel
  • Flooring: Checker Plate Floor
  • ATM: 750kg
  • Warranty: 12 Months Limited Warranty


  • Axle: 40mm Solid Round Axle
  • Spring: 5 Leaf Eye To Eye Spring
  • Brake: None
  • Jockey wheel: 6″ 750lbs Swing Up
  • Coupler: 50mm Australia Standard
  • Lights: LED
  • Lights Plug: Flat 7 Pin Plug
  • Safety Chain: 10mm
  • Ladder Rack Holders
  • Tie Down Rails All Round

Chassis: 1880mm x 1235mm

Internal Trailer Size: 1800mm x 1230mm x300mm

Wheels: Brand New 165R13 Wheels (tyres & rims)

  • Included – Long draw bars
  • Included – Tilt function for easy unloading
  • Included – Rated to the maximum allowed by law
  • Included – Full checker plate reinforced sides
  • Included – heavy duty leaf spring suspension
  • Included – Solid Axle
  • Included – Checker plate floor and mudguards
  • Included – Tie down rails all around
  • Included – Jockey wheel
  • Included – Spare wheel
  • Included – LED lights
  • Included – All paperwork and compliance required for either NSW or ACT Registration

Customise your trailer

Trailers Canberra know how important it is for you to have a trailer that suits your needs. Luckily as we build the trailers we have a range of options that let you customise the trailer to your needs.

  • Ladder Racks
  • Rear Fold Down Tail Gate Ramp
  • Slide Out Ramps from Under the Trailer
  • Canvas Covers with reinforced framing
  • Toolboxes
  • Mower Boxes
  • Spare Wheels
  • Cages in 600mm and 900mm
